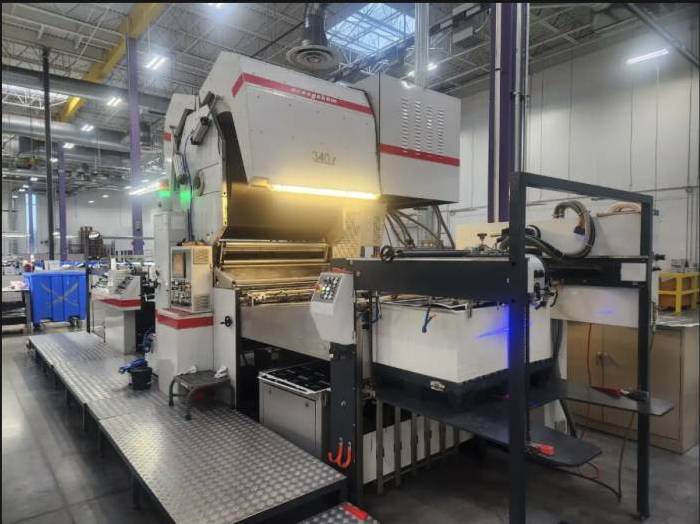

Ecosystem Aqua 110 (2008)
Ref.No: 137985
Technical Conditions
Optical
Laminating, coating machine
Age:
Year 2008
Max.Size:
142 x 110 cm (55 x 43 inch)
Current State:
In production
Colors:
Impress.Count:
mio
Extras:
Dealer Ref.No:
A7663
Description:
Technical specifications :
Minimum sheet format (width x length): 28 x 35 cm
Maximum sheet format (width x length): 110x 142 cm
Paper weight: 100 – 600 g/m²
Film thickness: 8-80 my
Maximum film width: 1090 mm
Maximum film reel diameter: 500 mm
Adhesive type: water/dry
Adhesive consumption: 10-30 humid g/m²
Mechanical speed : 90 m/min.
Pile height with standard pallet: 1300 mm including pallet
Maximum pile weight: 1000 kg including pallet
Percentage of adhesive solid: about .50%
Dimensions (L x l x h) : 950 x350 x390 cm
Equipment:
Automatic feeder with suction table, sheet entry and phase electronically controlled.
Anti-spray powder removal group with heated chrome mini calander roll, pressure roll with special rubber and doctor blade.
Laminating unit with 300mm chromed calender heated by means of forced water circulation.
Rubber counter pressure roll and start-up winder roll.
Coating group for water based adhesives complete with support for film roll with pneumatic single shaft adapter for film core 3” and 6”. Maximum film reel diameter 500 mm.
Adhesive coating tank and adhesive circulation by a pneumatic membrane pump.
Water irrigation system on the coating cylinder and teflon treatment on the adhesive containment tank for easier cleaning at the end of production.
Adhesive drying oven made up of a large 1100mm calender roll and hot air circulation system, with heat recuperation system, before the humid air is expelled.
Separation group for the laminated sheets with decurling system, film incision with diamond covered wheel and separation of the sheets by means of rubber coated separation rollers.
Transfer of the sheets from the separator to the stacker by means of aspirated belts and sheet slow down upon automatic stacker entry.
Lamination control system with Touch screen panel.
Electricity / compressed air specifications :
Machine delivered in operable condition in accordance with current EC safety rules and regulations. Electrical power 400 volts, three-phase PE, 50 Hz. Power requirement: 85 KW.
Fluid heating unit (power supply three-phase 400 volts PE) power requirement: 40 KW.
Other specifications upon demand (USA 60Hz, …)
Actual operating power of machine and fluid heating units approx. between 60 to 70 KW
Machine requires compressed air ranging on 1500 700 nl/min. for use with blowers inserted with pressure at 8 bar. The air compressor is not included in the supply.
Accessories included in the standard machine:
Operator footboards.
PIAB vacuum unit.
Film cut and trim group with tension regulator and scrap winder.
Fluid heating unit for the production of hot water for the joining calender roll and oven calender with the possibility of differential temperature regulations. The unit is equipped with heat exchanger for rapid temperature changes, supplied by a water discharge circuit.
Special piping for hot water in pressure, pipe fittings and stop valves for the connections between the fluid temperature control units and the drying group.
Remote assistance system with Ethernet connection via ADSL line.
Optional accessories included :
Laminated sheet separation system with hot rotating knife for polyester, metalized and embossed films, with a Scatec laser reading system
Pneumatic side lay/pinch-pull action
Spare counter pressure roller, complete with bearings
Additional air for big format sheets at feeder
Antistatic passive bar at stacker
Minimum sheet format (width x length): 28 x 35 cm
Maximum sheet format (width x length): 110x 142 cm
Paper weight: 100 – 600 g/m²
Film thickness: 8-80 my
Maximum film width: 1090 mm
Maximum film reel diameter: 500 mm
Adhesive type: water/dry
Adhesive consumption: 10-30 humid g/m²
Mechanical speed : 90 m/min.
Pile height with standard pallet: 1300 mm including pallet
Maximum pile weight: 1000 kg including pallet
Percentage of adhesive solid: about .50%
Dimensions (L x l x h) : 950 x350 x390 cm
Equipment:
Automatic feeder with suction table, sheet entry and phase electronically controlled.
Anti-spray powder removal group with heated chrome mini calander roll, pressure roll with special rubber and doctor blade.
Laminating unit with 300mm chromed calender heated by means of forced water circulation.
Rubber counter pressure roll and start-up winder roll.
Coating group for water based adhesives complete with support for film roll with pneumatic single shaft adapter for film core 3” and 6”. Maximum film reel diameter 500 mm.
Adhesive coating tank and adhesive circulation by a pneumatic membrane pump.
Water irrigation system on the coating cylinder and teflon treatment on the adhesive containment tank for easier cleaning at the end of production.
Adhesive drying oven made up of a large 1100mm calender roll and hot air circulation system, with heat recuperation system, before the humid air is expelled.
Separation group for the laminated sheets with decurling system, film incision with diamond covered wheel and separation of the sheets by means of rubber coated separation rollers.
Transfer of the sheets from the separator to the stacker by means of aspirated belts and sheet slow down upon automatic stacker entry.
Lamination control system with Touch screen panel.
Electricity / compressed air specifications :
Machine delivered in operable condition in accordance with current EC safety rules and regulations. Electrical power 400 volts, three-phase PE, 50 Hz. Power requirement: 85 KW.
Fluid heating unit (power supply three-phase 400 volts PE) power requirement: 40 KW.
Other specifications upon demand (USA 60Hz, …)
Actual operating power of machine and fluid heating units approx. between 60 to 70 KW
Machine requires compressed air ranging on 1500 700 nl/min. for use with blowers inserted with pressure at 8 bar. The air compressor is not included in the supply.
Accessories included in the standard machine:
Operator footboards.
PIAB vacuum unit.
Film cut and trim group with tension regulator and scrap winder.
Fluid heating unit for the production of hot water for the joining calender roll and oven calender with the possibility of differential temperature regulations. The unit is equipped with heat exchanger for rapid temperature changes, supplied by a water discharge circuit.
Special piping for hot water in pressure, pipe fittings and stop valves for the connections between the fluid temperature control units and the drying group.
Remote assistance system with Ethernet connection via ADSL line.
Optional accessories included :
Laminated sheet separation system with hot rotating knife for polyester, metalized and embossed films, with a Scatec laser reading system
Pneumatic side lay/pinch-pull action
Spare counter pressure roller, complete with bearings
Additional air for big format sheets at feeder
Antistatic passive bar at stacker
